When the ignition is turned off the ORANGE wire will pulse once. 1977 Triumph Tr7 Owners Manual Handbook With Wiring Diagram.
Diagram Chrysler 300 Radio Wiring Diagram Full Version Hd Quality Wiring Diagram Diagramia Prcsestosg It
E D F A1 A A U T O-WI R E a d v a n c e M a y b e r e p r o d u c e d f o r r p e r s o n a l n o n-c o m m.
Pac tr7 wiring diagram. Works as intended and came with instructions that mentioned where each wire goes. The only problem I had was the wire was so small my ground wire came loose from the connector and it wouldnt play movies but I just folded the wire over to double the thickness and it hasnt came loose yet. These Features are 17-23 as listed below.
Pac Tr7 Wiring Diagram Install the TR-7 only in RV and Marine applications where there is no parking hand position and wire according to the diagram using only the wires below. Connect the WHITE wire to the lock relay and the ORANGE to the unlock relay. -Generic bypass-ground the PB wire usually lt green or pink i usually tie it in with the black old decks and a lot of cheaper ones work like this if your instruction manual says something like attach wire to parking break and engage to watch video chances are this is the way.
PAC launches a fully integrated Jeep Wrangler JL and Gladiator JT kit for its Stinger Read More THE FIRST DOUBLE DIN DASH KIT FOR 1998-2001 DODGE RAM 1500 1998-2002 DODGE RAM 2500 AND DODGE RAM 3500 TRUCKS AVAILABLE NOW FROM PAC. The TR7 has 7 additional Bonus Features not documented in the instructions. Wiring Harness And Wire.
The car doesnt have any wire that connects the parking brake to the AV receiver. Clarion vx and tr-7 hookup diagram wiring diagram for pac tr-7 to bypass video blcck on. The Anet A8 motherboard Source.
Connect the GREEN wire to a true ignition wire of the vehicle. The older TR-7 in the black case does not support these features. 1980 Triumph Tr7 For Classiccars Com Cc 1269017.
Connect the GREEN wire to a true ignition wire of the vehicle. Sometimes the wire will be pink or brown usually lt green though. Go to amazon or google PAC-tr7 module.
Technical support has no. To download the TR12 PC application follow these steps. Low Voltage Trigger Module.
AliExpress As these MOSFET boards are made for 3D printers the installation process for them is very. My Alpine receiver defaults to settings adjustment unavailable due to vehicle in motion mode unless connected to a bypass or a vehicles parking brake sensor cable. 1975 Triumph Tr7 Owners Manual Handbook With Wiring Diagram Consumer Info.
KKmoon Anet ABase Control Mother Board Mainboard for Anet A8 DIY 3D 3 Pin IEC C14 Inlet Module Plug Switch Male Power Socket 10A V. Clarion vx and tr-7 hookup diagram wiring diagram for pac tr-7 to bypass video blcck on. Connect the TR-7 according to the diagram below.
Eliminates turn-on pop in aftermarket amplifiers. Only one switch fitted prior to this change. Triumph Main Wiring Loom 99 7056 1979 80 Tr7 Tiger T140e Bonneville Motorcycle Electrical Ignition Parts Bulksmsc Wires Cabling.
The lock comes on if you have the aux on while in drive. OD was operative only in top up to TS6266 may 1955. Module senses voltages as low as 08v and provides a 12v output with a 1-second delay.
The circuits built into the two motors for the sunroof and sunshade are different than our window motor circuits and the European. Clarion vx and tr-7 hookup diagram wiring diagram for pac tr-7 to bypass video blcck on. Only the TR7 supports these features.
Eliminates turn-on pop in aftermarket amplifiers. Other unique projectsinstalls can also be derived from the TR-7 so PAC leaves it to the installers imagination to experiment with these features. 2 TR7jpg This must be saved in the same folder as the TR7 wiring diagram because it is embedded in sheet 1 3 TR7 1980 wiring diagrampdf TR7 1980 wiring diagram keypdf This is from the paper copy of the workshop manual that came with my car and includes most of the 1981 changes.
Like I mentioned in a previous thread a few months ago without custom wiring and two Pac TR7 Trigger Modules per motor module we cannot get the sunroof to work with Global OpenClose like we have with our windows. Connect the WHITE wire to the lock relay and the ORANGE to the unlock relay. When the ignition is turned on the WHITE wire will pulse once after a 5 second delay.
One brake light fitted up to TS15601 May 1957 for US market. The Anet A8 uses a simple LCD with 5 buttons the problem is that the buttons. PAC TR-4 Low-Voltage Remote Turn-On Trigger.
This is the wiring diagram for the PAC TR-7 UNIVERSAL TRIGGER. Easily adds remote turn-on for aftermarket amplifiers. Triumph Tr7 Wiring Diagram Schematic - Do you know The concept of triumph spitfire wiring diagram that we present to you in this post is related to the.
PAC TR7 TR-7 Multi-Function Trigger Output Module and Alpine Video Bypass Universal Trigger Output Module Alpine. Pac Tr7 Wiring Diagram Install the TR-7 only in RV and Marine applications where there is no parking hand position and wire according to the diagram using only the wires below. Used with my Pioneer AVH-W4500NEX also used one year ago on my Pioneer AVH-W4200NEX.
Pac tr7 module will bypass the video lock. Up to TS12567 July 1955. It can be triggered off of speaker leads or 5 remote wires.
See diagram B2 for later wiring diagram. PAC does not provide technical support for these Bonus Features. Waste of money now on.
Tr7 lasted a whopping two months and has now stopped working. TR12 Alpine Preset Wiring Clarion Preset Wiring Pioneer Preset Wiring Installation Steps 1. Most radios will not need the yellow wire.

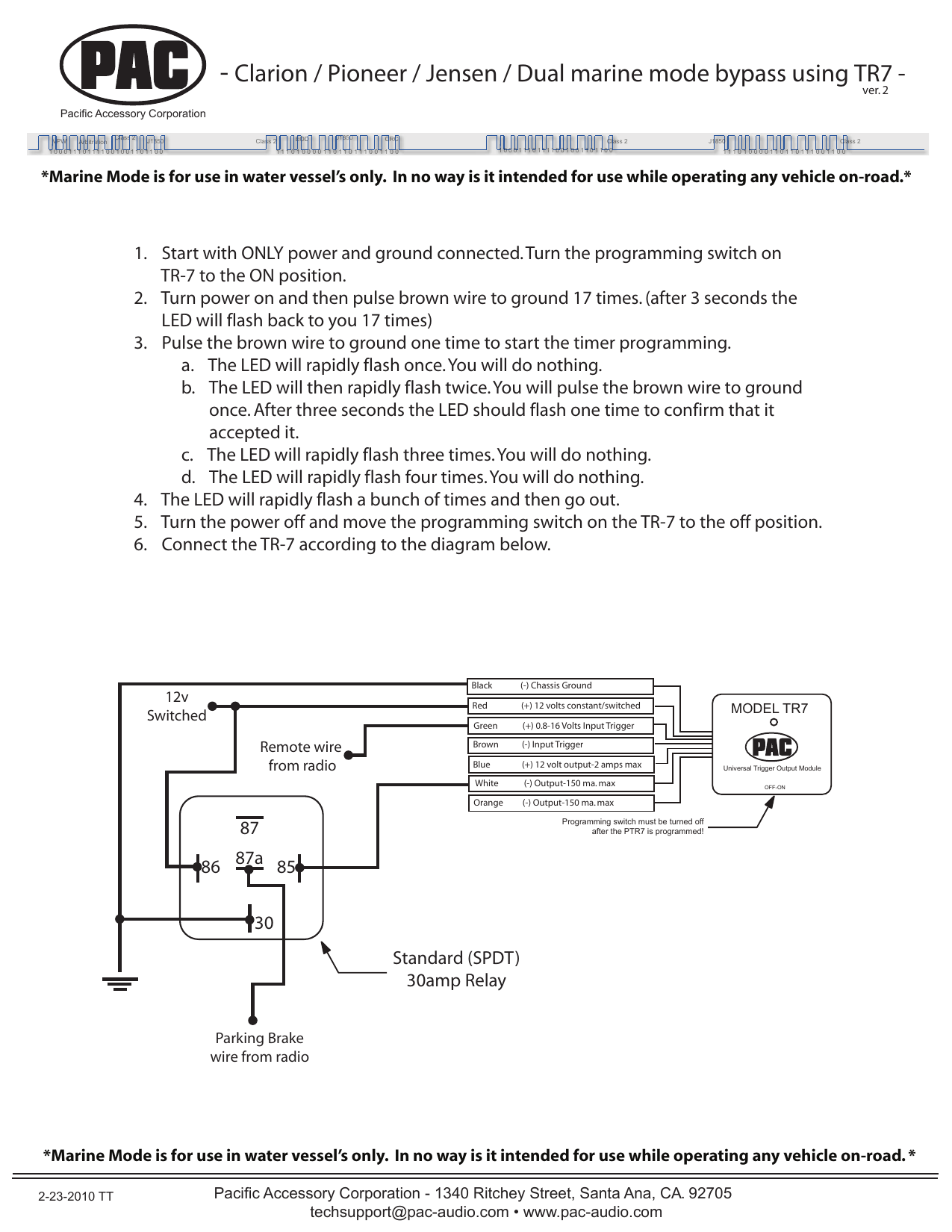

Clarion Pioneer Jensen Dual marine mode bypass using TR7 Download 3684k TR7 Alpine Bypass Download 21992k TR7 Bonus Features Download 19248k TR7 Flow Chart Download 6667k TR7 Instruction Manual Download 57567k. Pac Tr7 Wiring Diagram Install the TR-7 only in RV and Marine applications where there is no parking hand position and wire according to the diagram using only the wires below. This is the wiring diagram for the PAC TR-7 UNIVERSAL TRIGGER.
Shuts off the screen so you cant watch movies and drive. Tr7 Tr8 Rover 3500 Fuel Injection. Easily adds remote turn-on for aftermarket amplifiers to factory audio system that do not have turn on circuits or low voltage turn ons.
Module senses voltages as low as 08v and provides a 12v output with a 1-second delay. Diagram pac tr 7 wiring full diagrams triumph tr7 parts re question tr8 fuse keeps going forum which of these wires goes where looking for a ignition switch schematic headlight lift motor harness rimmer bros 08 rally t140 1984 cb650 simple fuel gauge testing tr7triumph com instrument panel fixing clock tach. The manuals I found on the web are for older versions.
